CADViewer User Manual and Icon Interface Commands

Toggle Space Object Display and Edit Mode

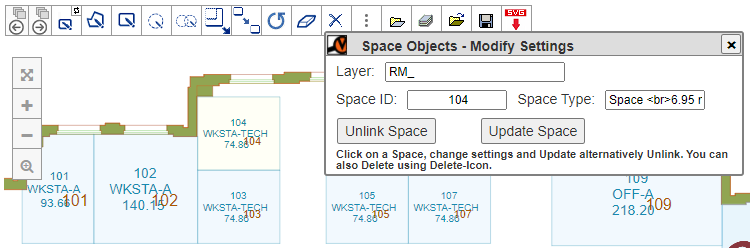

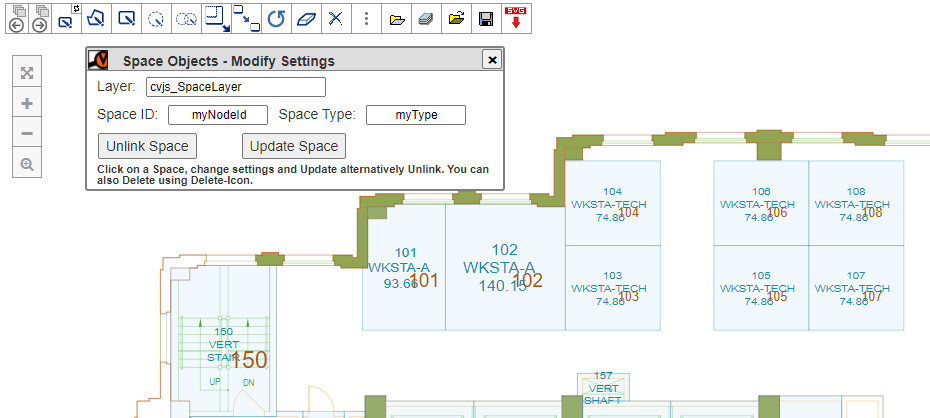

The Toggle Space Object Display and Edit Mode modal allows for users to edit setting of existing Space Objects.

The modal allows for:

  • Change Space Object Layer
  • Change the Space Object ID
  • Change the space Object display Type
  • Unlink a Space

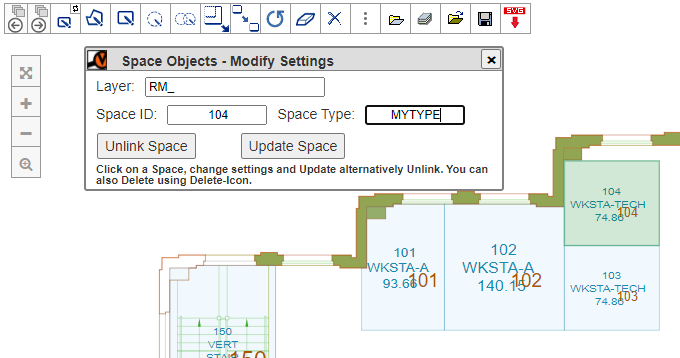

Click on a Space in on the canvas, it will highlight in green, enter new values into the modal, and click “Update Space”.



When a space is selected for “Unlink” it will highlight in yellow. The space exists as a logical entity (polygon), but is not associated with higher level information.

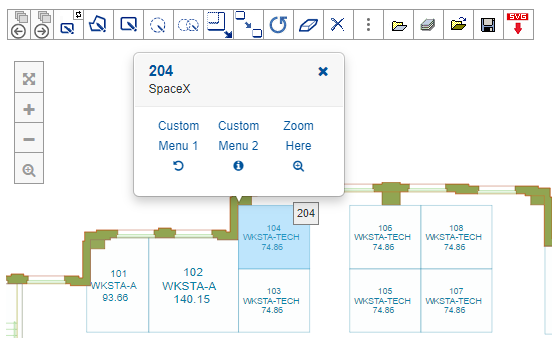

Any updated spaces will have their new settings. Use Save Space Objects to save or Delete to delete an object.
