Navigation

The Navigation Menu to the lower right on the canvas, controls navigation between the Model Space and the different Views in the Drawing. It displays the name of the current drawing/view displayed and it’s location in the array of pages.

Navigation

The Arrow-icons (fast backward, backward, forward and fast forward) allows users to scroll between layouts.

Rotation

The rotation icons, rotates the view either clockwise or counterclockwise

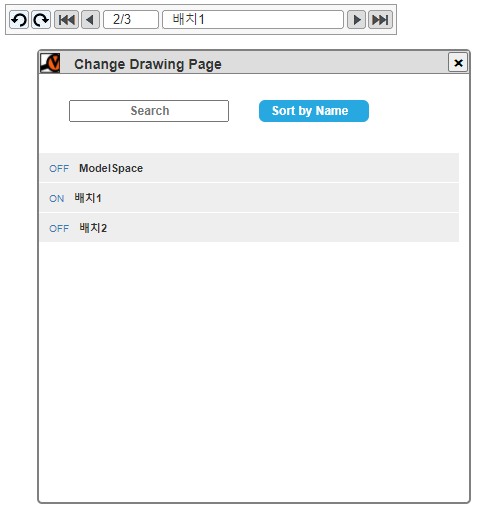

Modal page selection

Clicking on the Name field opens a new modal for a page selection:

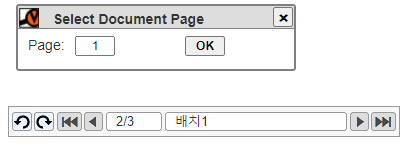

Number selection
