Getting more information
about a drawing

If you have opened a drawing in the CADViewer, you can view any pertinent information about this drawing, as provided by the drawing's creator/publisher. To do so, follow these steps:

  1. Click the Drawing Info button (shown below) in the window-top toolbar.

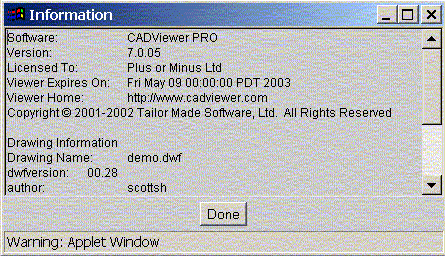

  2. A window appears (similar to the one shown below), displaying whatever information about this drawing that the publisher makes available.

  3. When you are finished with this drawing, click the very, very large Done button at the bottom of the window.
