CADViewer User Manual and Icon Interface Commands

Redline Arrow

The Redline Arrow command draws arrow objects interactivly on the canvas.

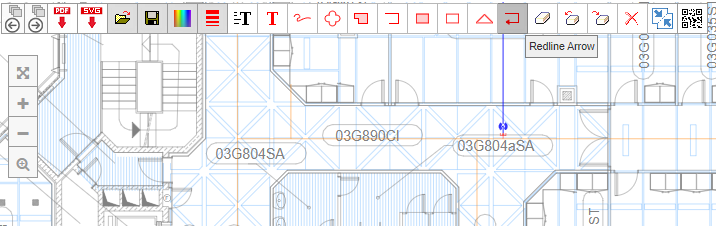

1: Select the command, and all other redline draw commands are locked and rendered with white background.

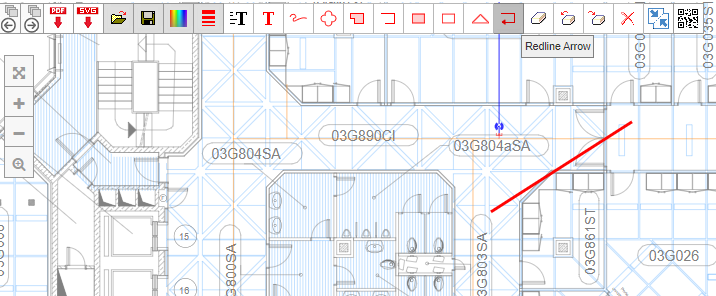

2: Select the end-point in the arrow.

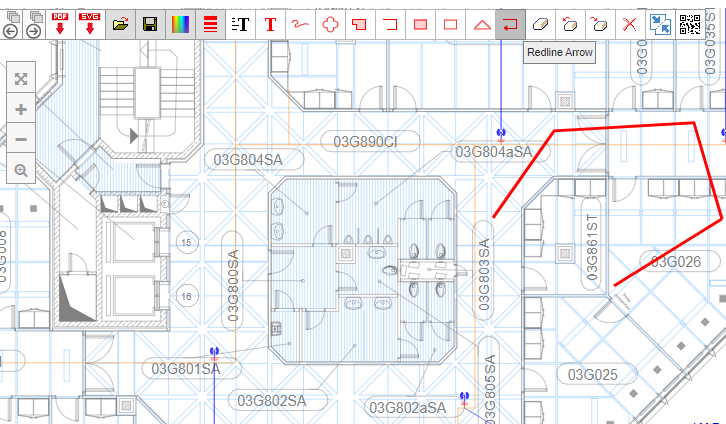

3: Select following points in the arrow

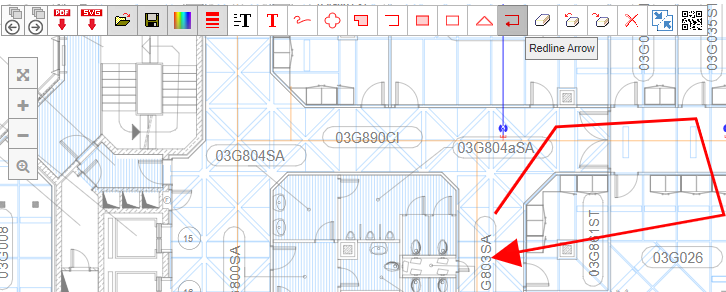

4: Finish with double-click or [Esc] in the location of the arrow-head.

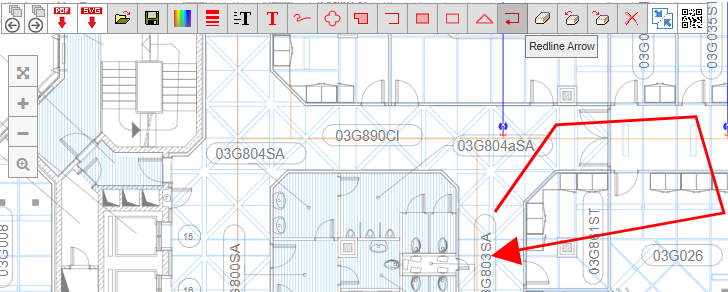

5: The command will repeat until the Redline Arrow icon is clicked again, now all other locked draw commands turns gray and are released:
