Redline Ellipse/Cloud/Circle

The Redline Ellipse/Cloud/Circle command draws Ellipse/Cloud/Circle objects interactivly on the canvas. Open the command, and choose the shape and click OK.

Click to select first corner, drag and release to select second corner.

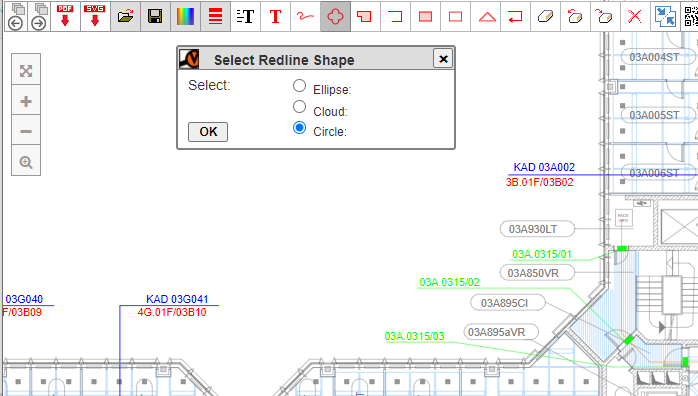

1: Open command, select shape and click OK:

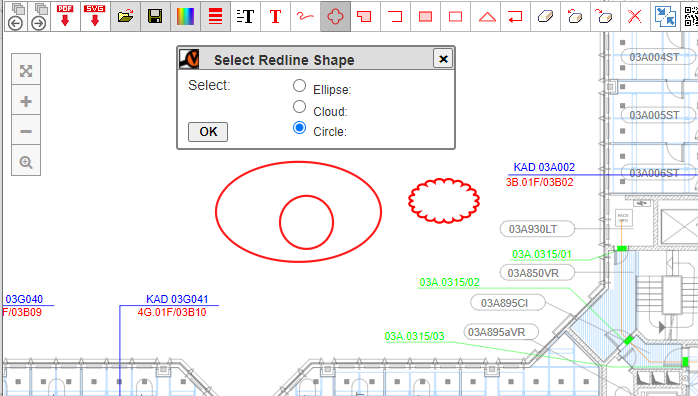

1: Final result after three shapes drawn:
