Conversion Cache

Conversion Cache Management

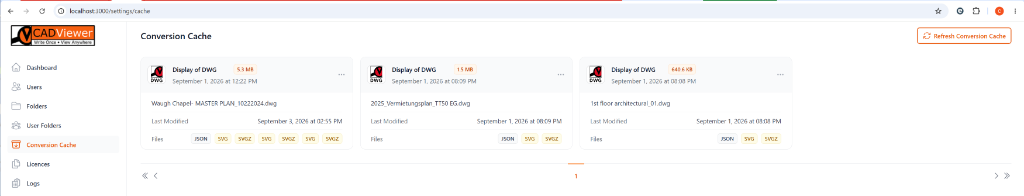

The Conversion Cache pane provides deep visibility into the actual outputs generated by AutoXchange.

Instead of raw files, this pane groups outputs into logical drawing “Cards”. For every converted drawing (like Waugh Chapel MASTER PLAN.dwg), you can see:

• Total Payload Size: The combined size of all generated outputs (e.g., 5.3 MB).
• Conversion Timestamps: When the file was first processed and when it was last modified.
• Output Artifacts: A visual tag array (e.g., JSON, SVG, SVGZ) that explicitly lists every format successfully extracted from the source CAD file.

This view makes it incredibly easy to verify that a complex DWG has been fully processed and that all required spatial and visual formats are available for the front-end CADViewer. You can use the Refresh Conversion Cache button to force the server to re-scan the cache directory if files were manipulated manually.
