CADViewer User Manual and Icon Interface Commands

Redline Filled Polygon

The Redline Filled Polygon command draws a filled polygon objects interactivly on the canvas.

Selecting the command, and all other redline draw commands are locked and rendered with white background.

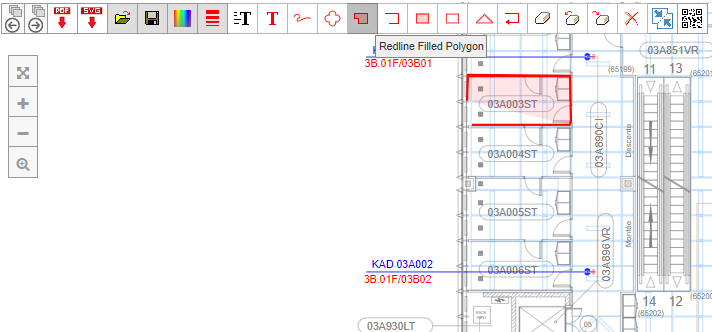

1: Click to select first corner point:

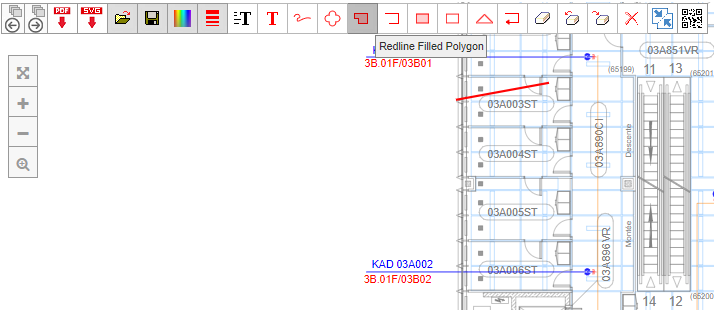

2: Continue and click corners :

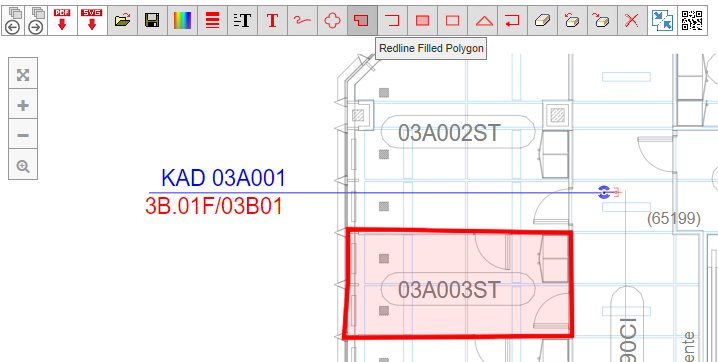

3: Finish with double-click or [Esc] :

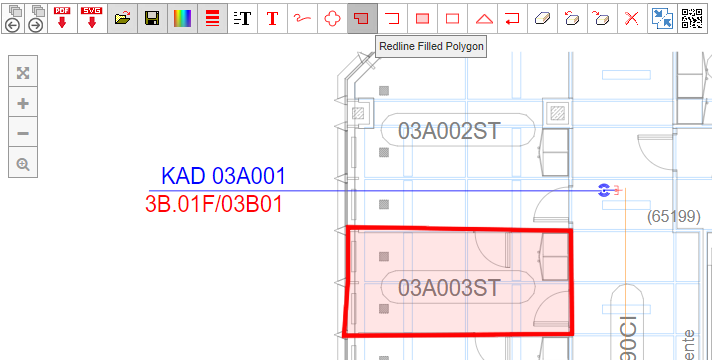

4: The command will repeat until the Redline Filled Polygon icon is clicked again, now all other locked draw commands turns gray and are released:
