CADViewer User Manual and Icon Interface Commands

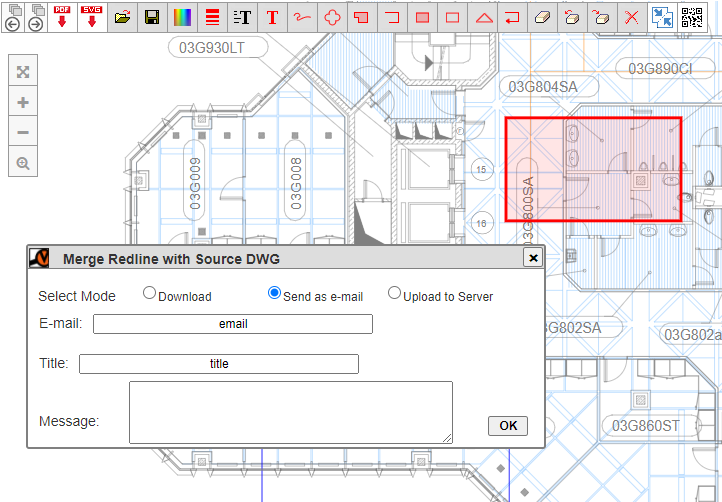

Merge Redline with Source DWG

The Merge Redline with Source DWG command supports three modes: Download, Send as e-mail, and Upload.

1: Download merges the screen content to a DWG that appears as a download link in the browser.

2: Send as e-mail, opens an interface to enter e-mail address, title and message. The mail is sent with a merged DWG as attachment.

The mail settings needs to be defined at Initialization of CADViewer through the method:

Also, in the Back-end Handlers, the configuration must be done for connecting to a mail server.

3: Upload is optional for uploading to a server, and can be suppressed throught the API.
