CADViewer User Manual and Icon Interface Commands

Redline Rectangle

The Redline Rectangle command draws rectangle objects interactivly on the canvas.

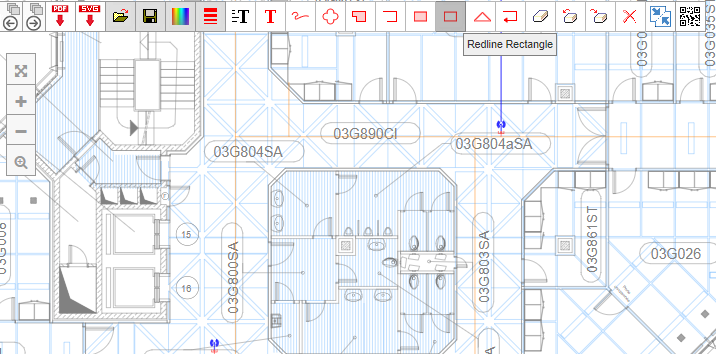

1: Select the command, and all other redline draw commands are locked and rendered with white background.

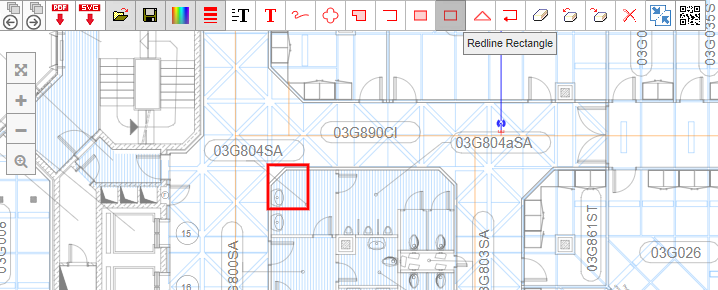

2: Click and drag.

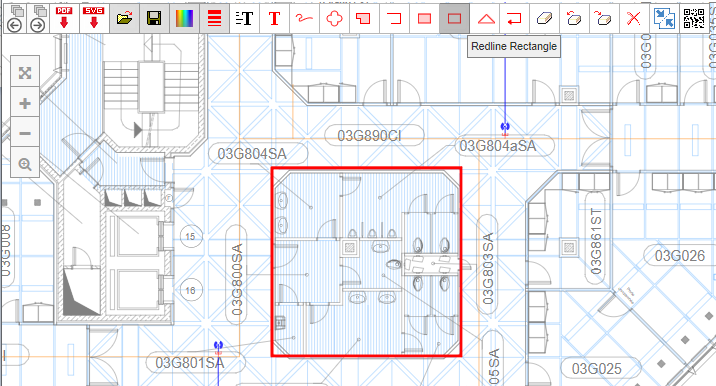

3: Release in final postion.

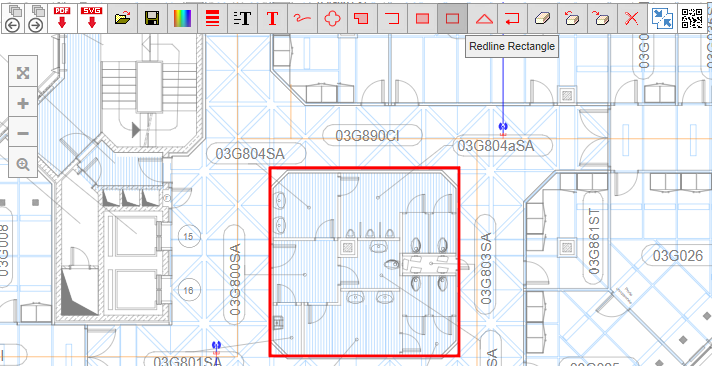

4: The command will repeat until the Redline Rectangle icon is clicked again, now all other locked draw commands turns gray and are released:
