All Layers On
The All Layers On command will set all layers display status to On.

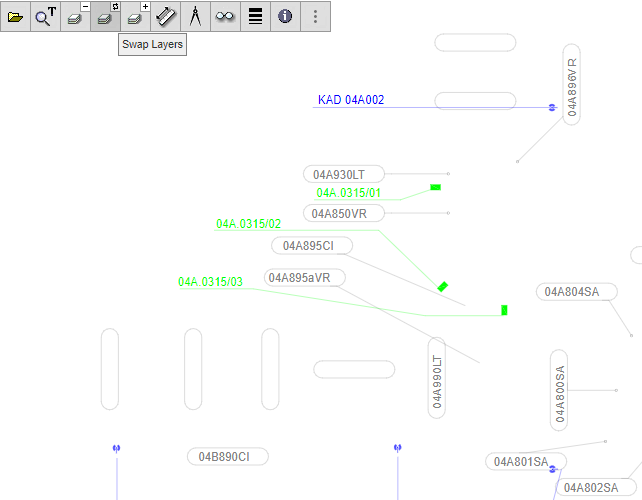

Before:

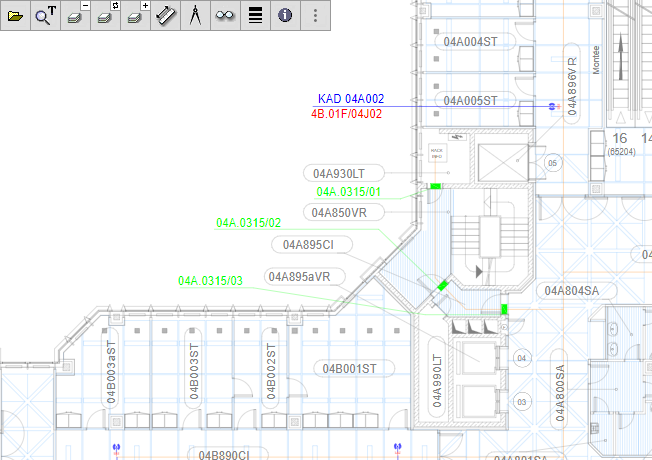

After clicking All Layers On command:
Last updated on 15 Feb 2023
Published on 22 Mar 2020
