dotNetCore - conversions/pdf not working
A typical error would be that the path settings in apsettings.json used by CADViewerController does not match the actual install location.

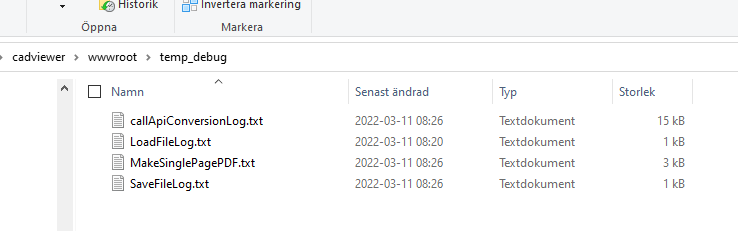

Check the log files in the env.WebRootPath/temp_debug, typically cadviewer/wwwroot/temp_debug/, to see if there are any path errors in file creation, file save and file conversion.
Folder wwwroot/temp_debug
and compare those traces with the settings in:
apsettings.json
{
"Logging": {
"LogLevel": {
"Default": "Warning"
}
},
"AllowedHosts": "*",
"CADViewer": {
"ServerLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/",
"ServerUrl": "https://localhost:44374/",
"fileLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/files/",
"fileLocationUrl": "https://localhost:44374/converters/files/",
"converterLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2022/windows/",
"ax2020_executable": "AX2023_W64_23_01_72.exe",
"cvjs_debug": true,
"cvjs_svgz_compress": false,
"licenseLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2022/windows/",
"xpathLocation": "c:/cadviewer-testapp-dotnet-core-01/cadviewer/cadviewer/wwwroot/converters/ax2022/windows/",
"callbackMethod": "/CADViewer/getFile",
"MailServer": "smtp.dreamhost.com",
"MailServerPort": 465,
"MailUserName": "testing@cadviewer.com",
"MailPassword": "TMS-CH!01"
}
}
