Inkscape State Layers for IWMS

Aplication programmers can design SVG images in Inkscape and use the Inkscape layer concept to organize and name layers inside the SVG image.

These SVG images can subsequently be inserted into the drawing through the Custom Space Object Menu.

The layers defined inside Inkscape can now be directly accessed and manipulated through the CADViewer Front-end API, see the Space Object Layers section for details.

This is extremely useful for any application in IOT, Integrated Workplace Management Solutions and Security & Surveillance Applications, where there is a need to dynamically change the state of an object.

Below is a sample Inkscape image, door_allstates01.svg with defined Inkscape layers and sample code to manipulate those layers.

The sample will open, close and lock the door(s).


Door SVG Image

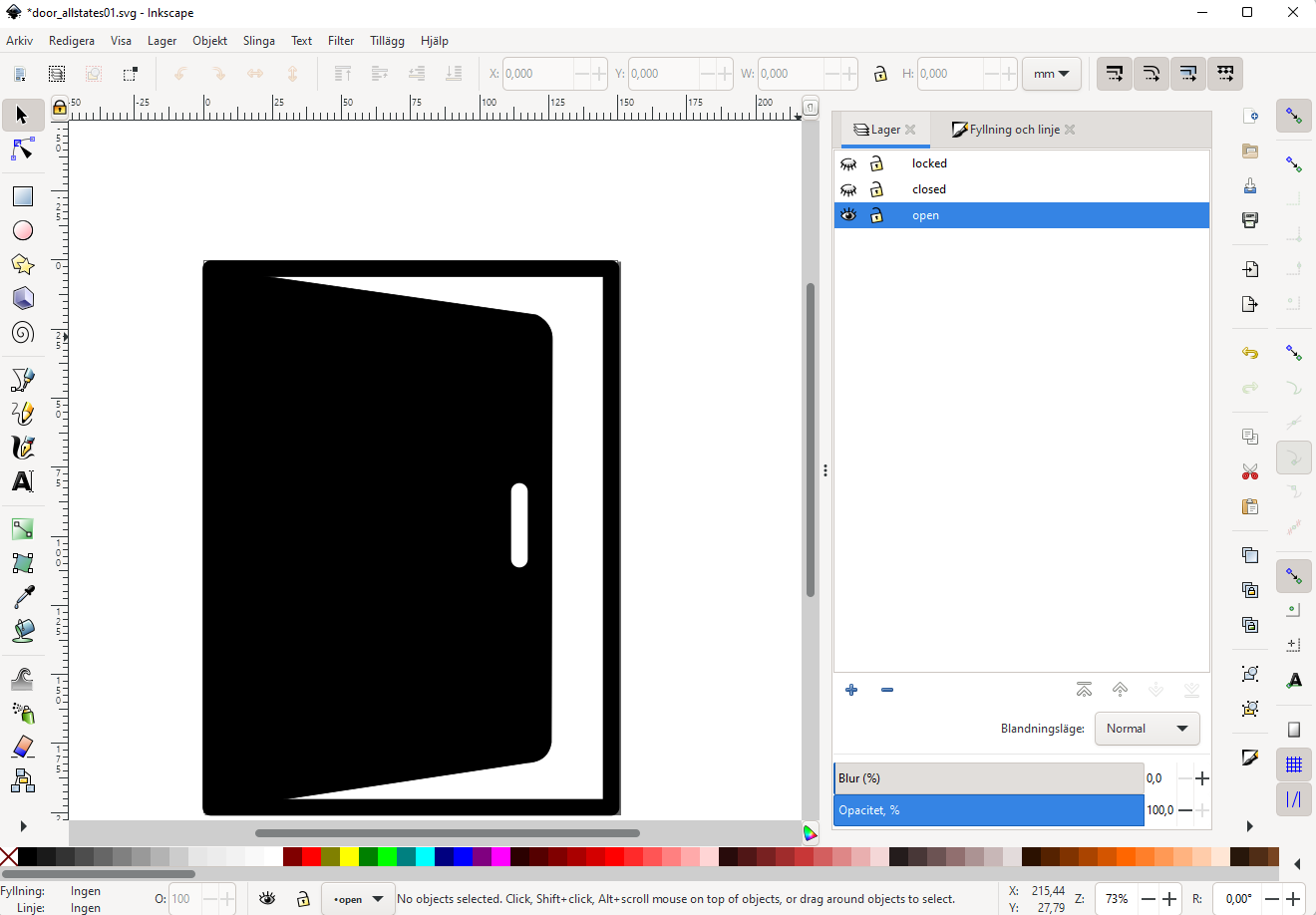

door_allstates01.svg - Layer open
Open Door

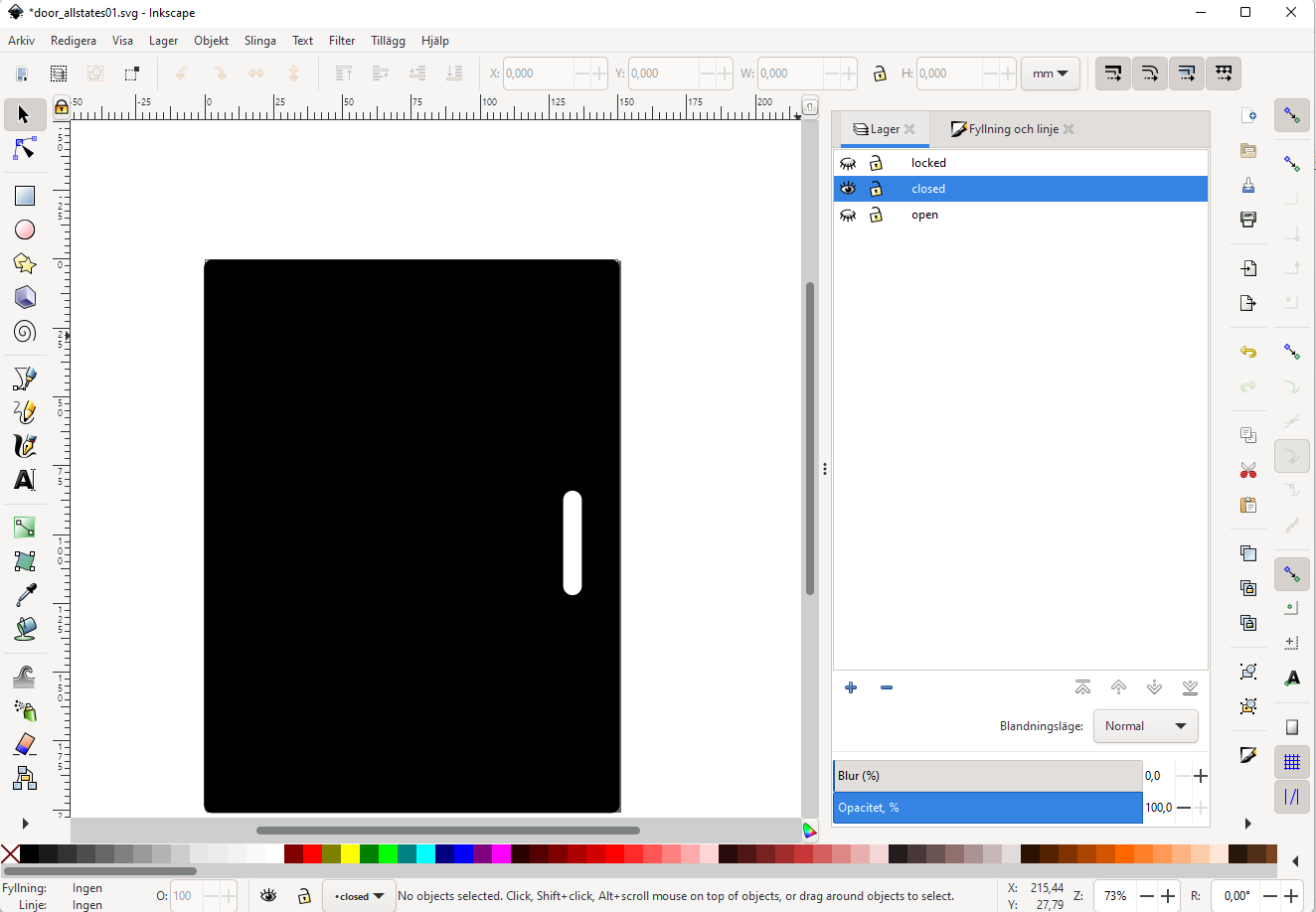

door_allstates01.svg - Layer closed
Closed Door

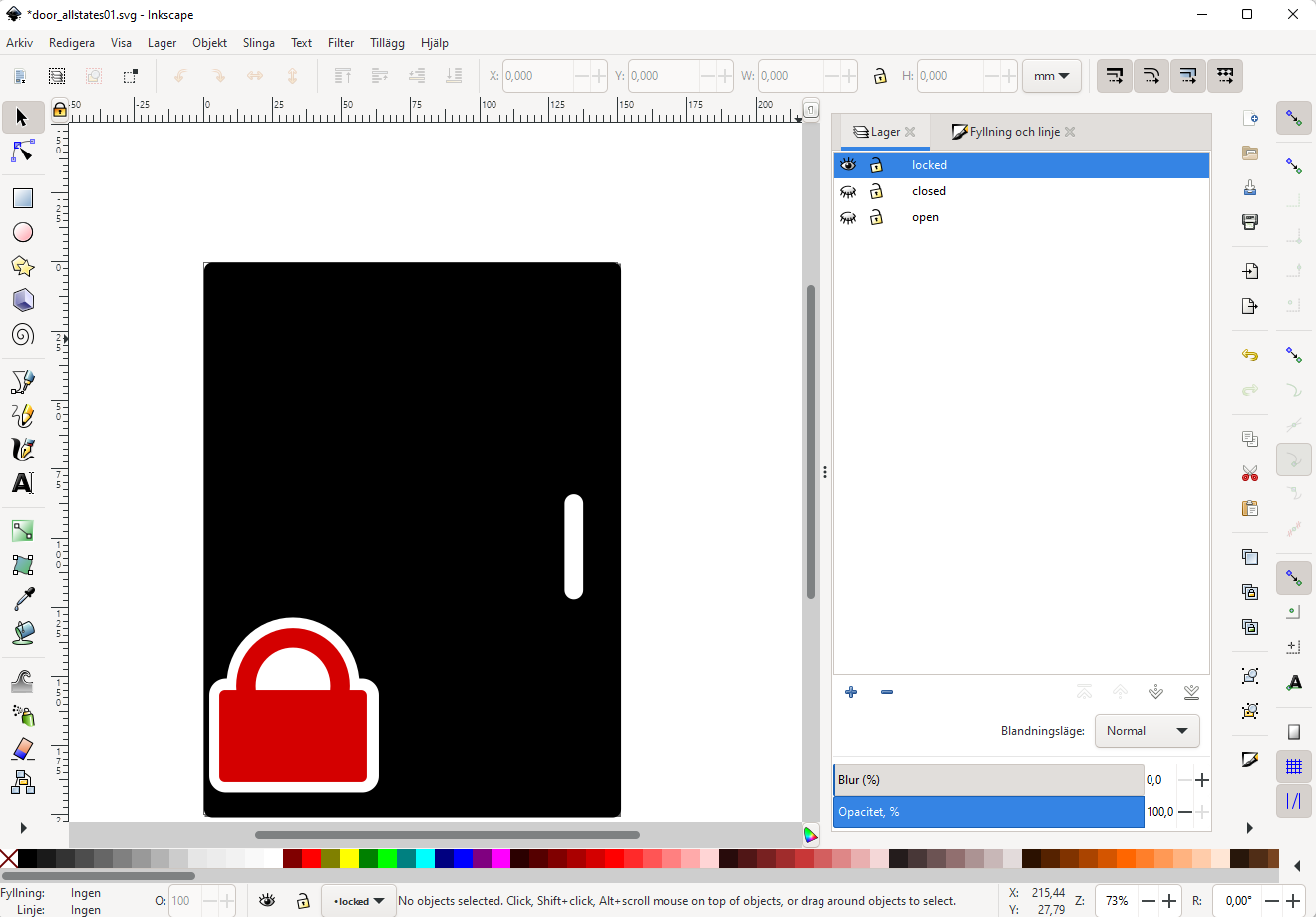

door_allstates01.svg - Layer locked
Locked Door

Code Segments

Open door(s)

    function openall(){
		cvjs_showOnlyObjectInAllSpaceObjectGroup("open", "id");
    }

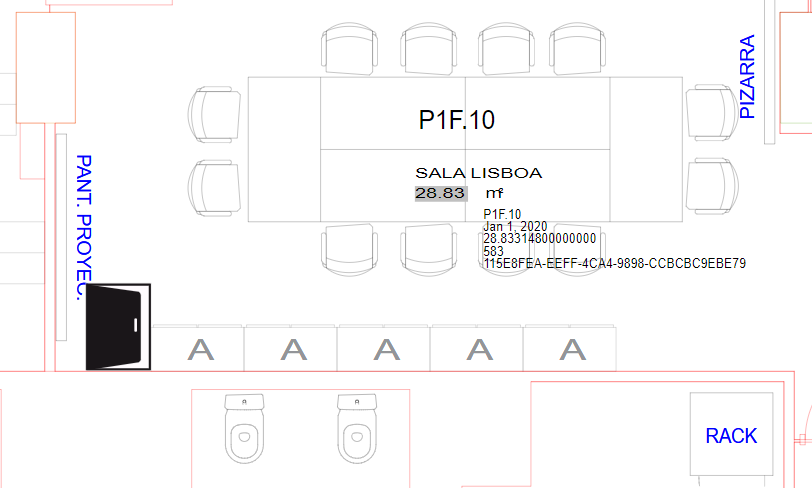

Open Door

Close door(s)

    // close single
    function closelast(){
		cvjs_showOnlyObjectInSpaceObjectGroup(thisSpaceObject, "closed", "id");
	}

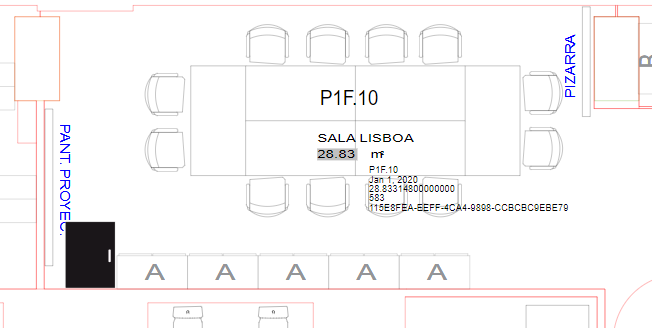

Close Door

Lock door(s)

    // lock single
    function locklast(){
        cvjs_showOnlyObjectInSpaceObjectGroup(thisSpaceObject, "locked", "id");
    }

    // lock all based on loop
    function lockall(){
        // note - we loop over all objects
        var spaceObjectIds = cvjs_getSpaceObjectIdList();
        for (var spc in spaceObjectIds) {
            var node = spaceObjectIds[spc];
            cvjs_hideObjectInSpaceObjectGroup(node, "open", "id");
            cvjs_hideObjectInSpaceObjectGroup(node, "closed", "id");
            cvjs_showObjectInSpaceObjectGroup(node, "locked", "id");
        }
    }

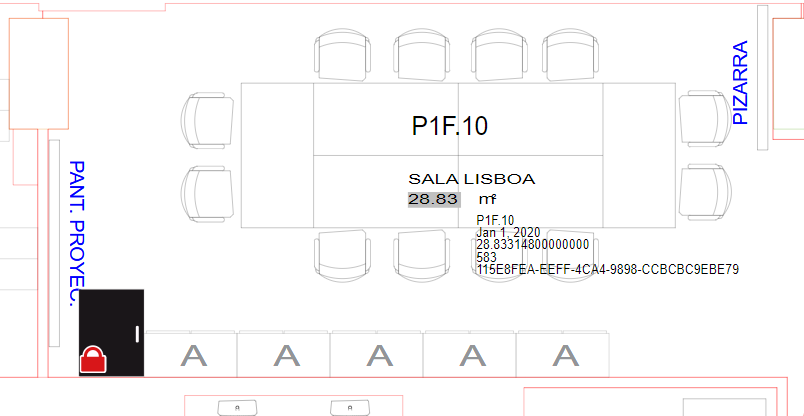

Lock Door
